The inner surface roughness can reach Ra 5uin, and the flow channel is completely cleanable. The inner surface roughness can reach Ra 5um, and the flow channel is completely accessible for cleaning.
Minimization of the diversion area Minimization of the diversion area
Convenient for purging Convenient for cleaning and purging
Maximize traffic Maximizing traffic

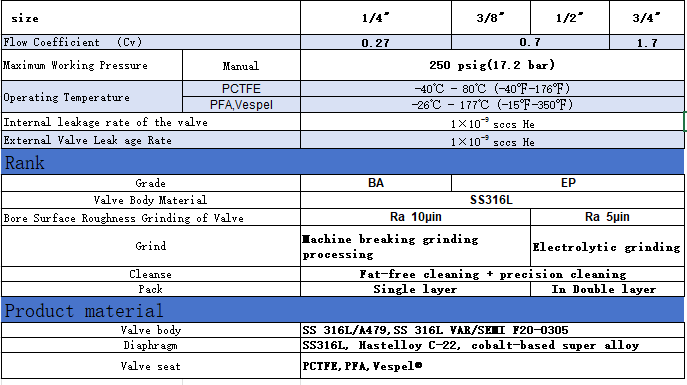

Product Parameters
Specification
Product Display

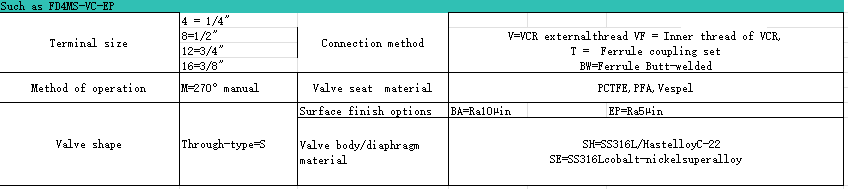

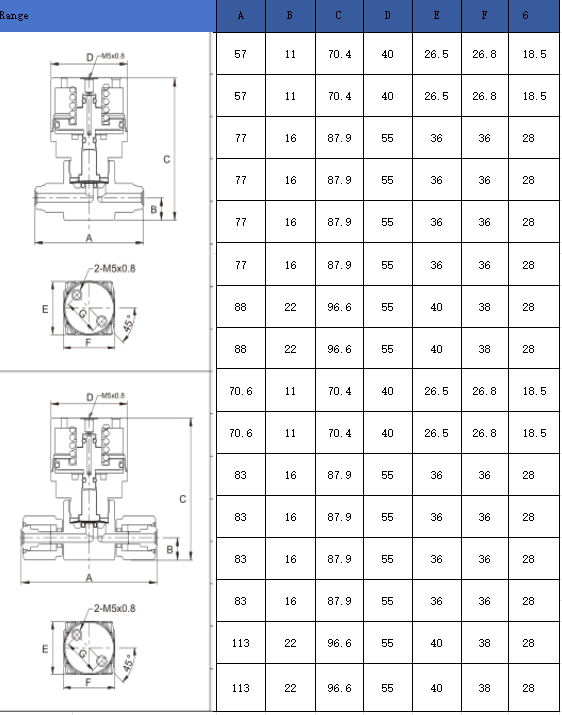

Ordering option guidance in dimension
FAQ information for your ordering
PRODCUTION
![Project design]( "Project design")
Project design![CNC Program Process]( "CNC Program Process")
CNC Program Process![Surfurce and Die Treatment]( "Surfurce and Die Treatment")
Surfurce and Die Treatment![finish inspection]( "finish inspection")
finish inspection![Pressure test]( "Pressure test")
Pressure test![Assembly]( "Assembly")
Assembly![packing process]( "packing process")
packing process
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company. We have specialized in manufacturing fittings and valves for more than 10 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below
