Special 2500psi Ball Valve assembled non spring series

  • Special 2500psi Ball Valve assembled non spring series

Special 2500psi Ball Valve assembled non spring series
Material:SS316L and others,To order other valve body materials, please replace "SS" in the order number "SS-BV22G-T4" with the code of a new material. For example: "HC-BV22G-T4".

Temperature:53 to 148 ℃

Allow bidirectional flow

Reguire less installation space Operating pressure:3000psig Helium test at 1000psig
+8613661805023
+8613764581743
+86 13162017115
Contact Us

Product Parameters

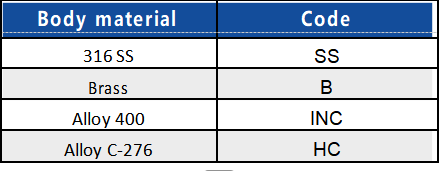

Materials of Construction

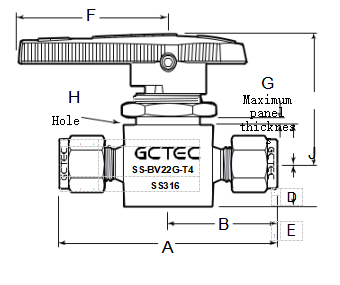

body materialball valve drawing2


FAQ information for your ordering
Such asBV20GBV20
Valve shapeFlow channelFlow channelFlow channelFlow channelFlow channelFlow channel

21G,22G(Through-type,Right angel type ,Three way)23G(Through-type）24G(Through-type,Right angel type)21G,22G(Through-type,Right angel type ,Three way)23G(Through-type）24G(Through-type,Right angel type)
Temperature ℃Working pressure(psi/bar)
-53(–65)to 10(50)2500 (172)3000（206）1500（172）
10(50)to 65 (150)2500 (172)3000（206）1500（172）2500（172）
3000（206）1500（103）
93(200）2500 (172)2800(193)1500（172）
121(250）2500 (172)2650（182）spacer



1482500 (172)2500(172)

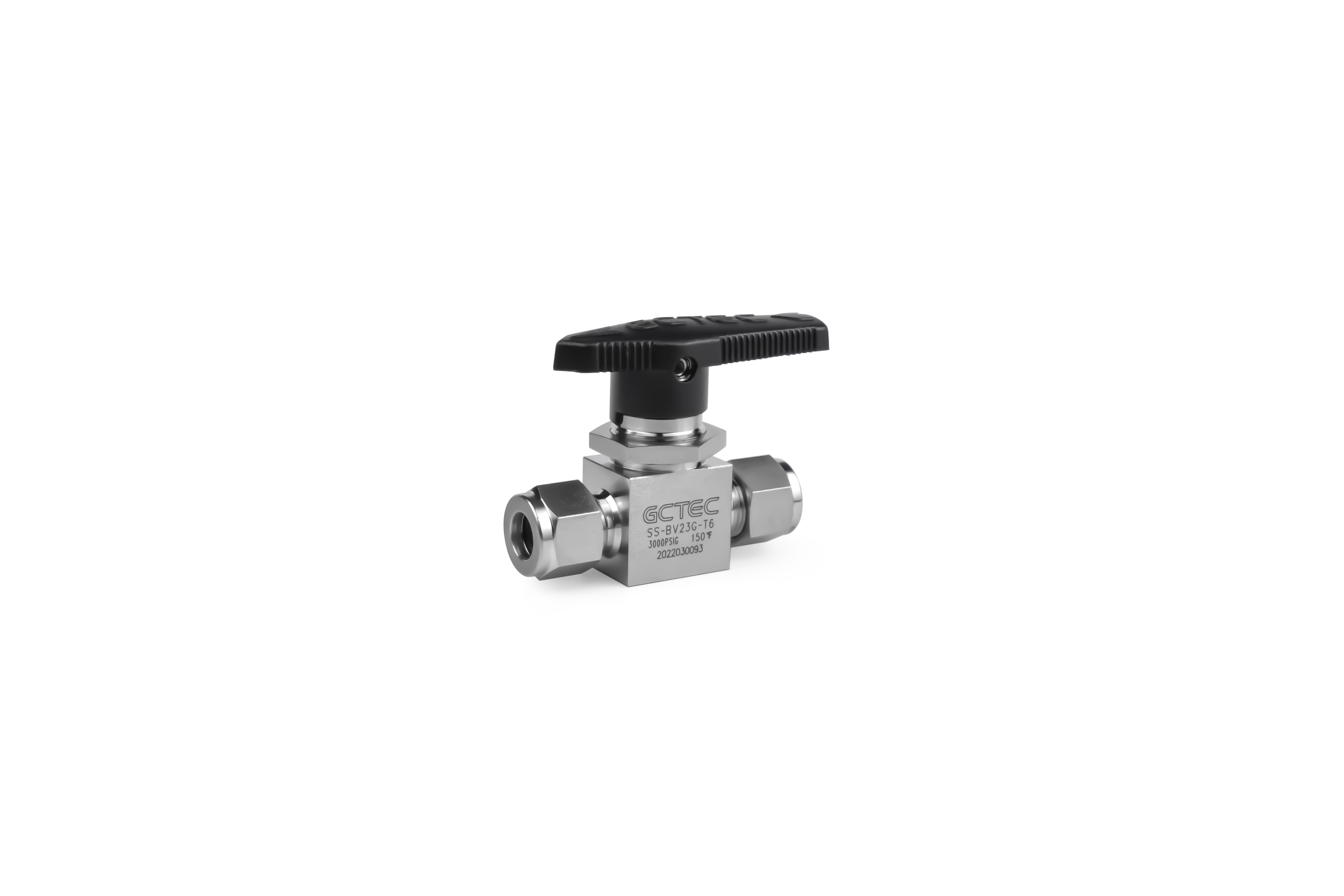

3


Product Display

General drawing and new seating material is to be compatible with new medium, we ensure high quality cleanness


ball valve41

TWO WAY BALL SERIES BV20, BV20G


BALL-2




PRODCUTION

  • Project design
    Project design
  • CNC Program Process
    CNC Program Process
  • Surfurce and Die Treatment
    Surfurce and Die Treatment
  • finish inspection
    finish inspection
  • Pressure test
    Pressure test
  • Assembly
    Assembly
  • packing process
    packing process
