Material:SS316L,SS316L VAR
high purity(BA grade)
ultra-high purity(EP grade)
We strictly control the selection of raw materials and introduce high-precision inspection instruments to ensure the stability of the materials. In addition, all processes from component processing, assembly, inspection to shipment are carried out internally within the company. At Juchuang, our passion for pursuing better quality has created a culture of quality that extends throughout our sales and service.

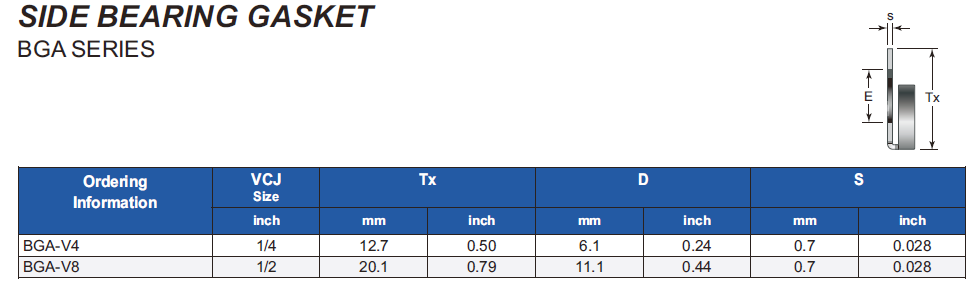

Product Parameters
GCTEC VACUUM COUPLING RETAINER have high-purity metal to metal sealing, providing leak free service within the vacuum to positive pressure range

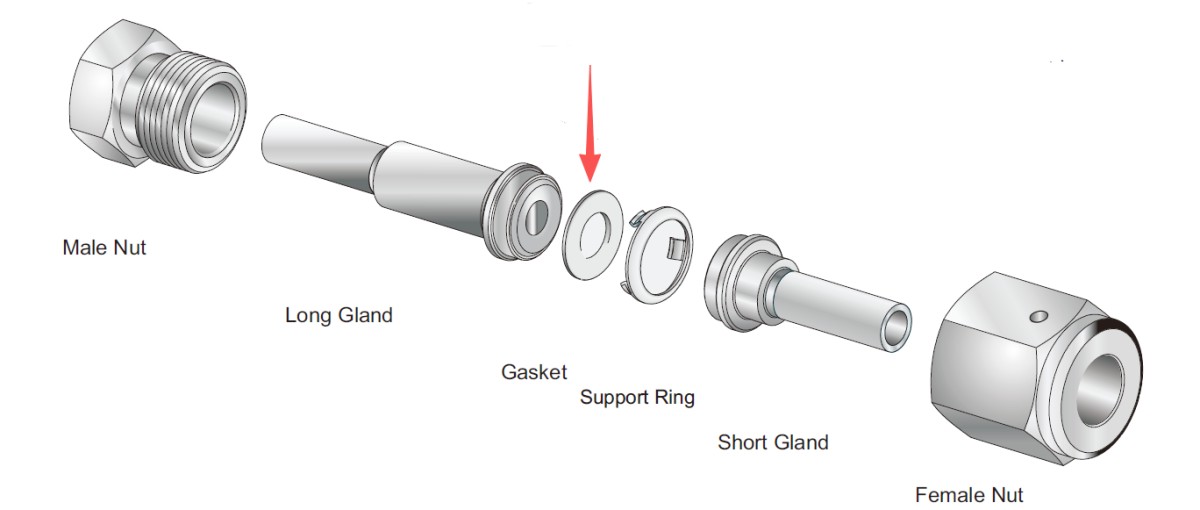

During the engagement of the external threaded nut or joint body hexagon with the interanl threaded nut,the sealing on the VCR component can be completed when the gasket is compressed by the flanges on both sides.

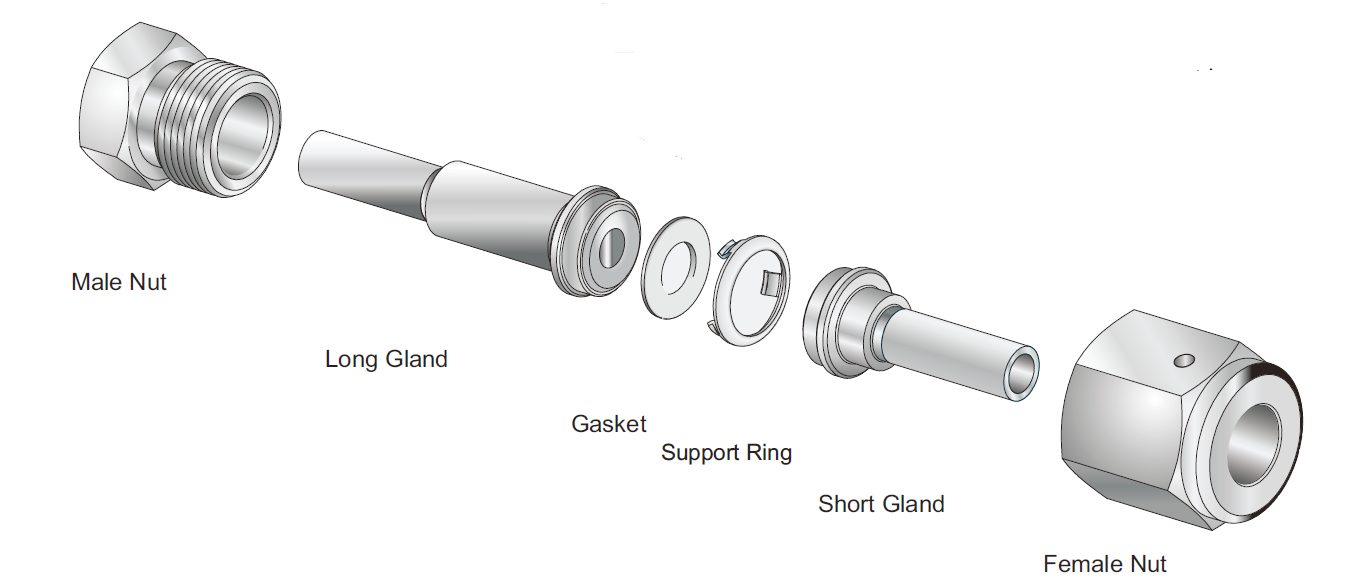

It is Include SERIES #1 +SERIES #2+SERIES#3+SERIES#4+SERIE#5

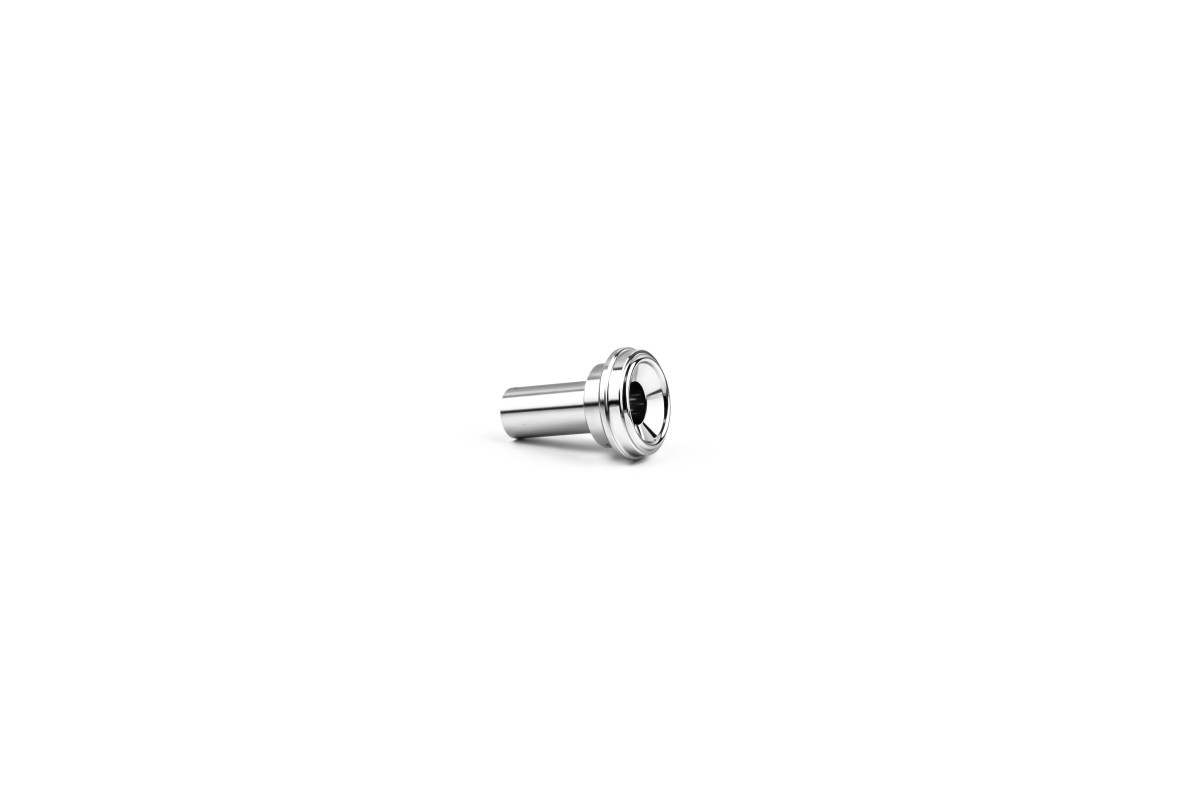

Short Gland

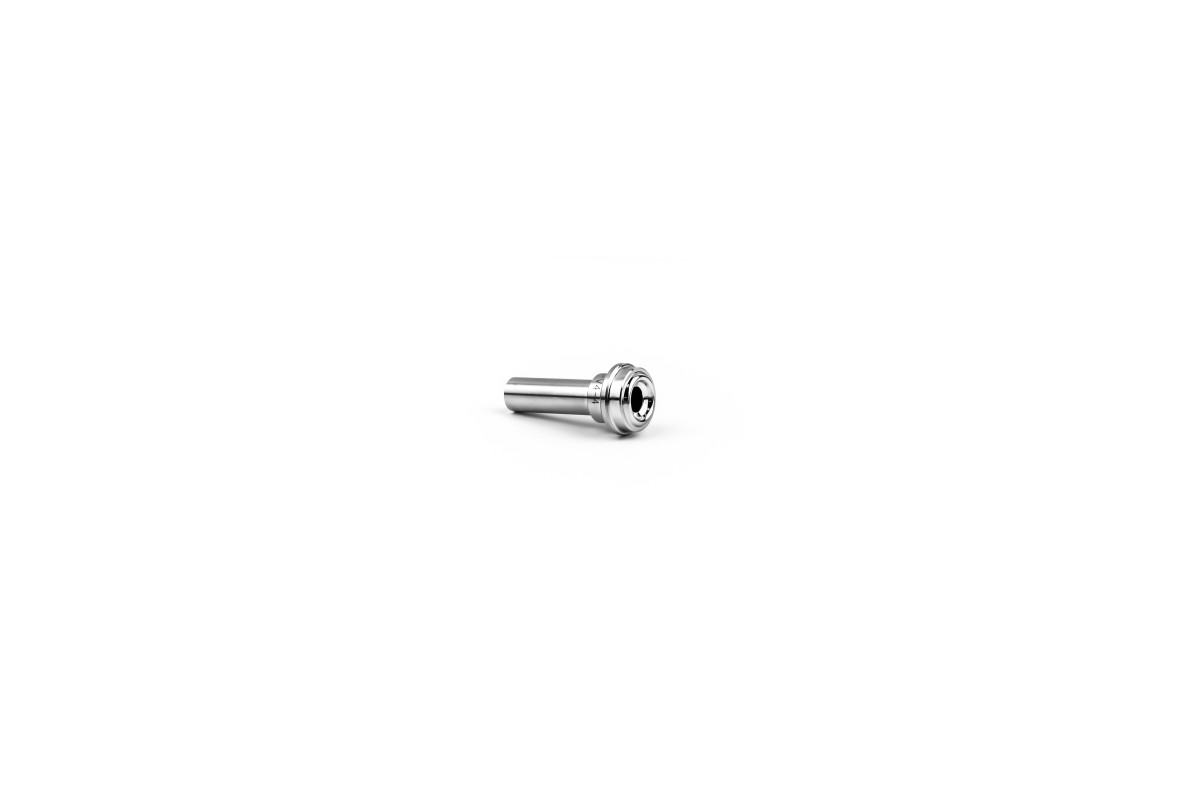

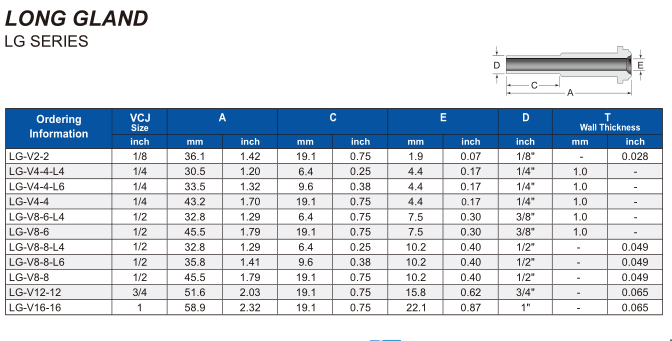

Long Gland
Male Nut
Female Nut

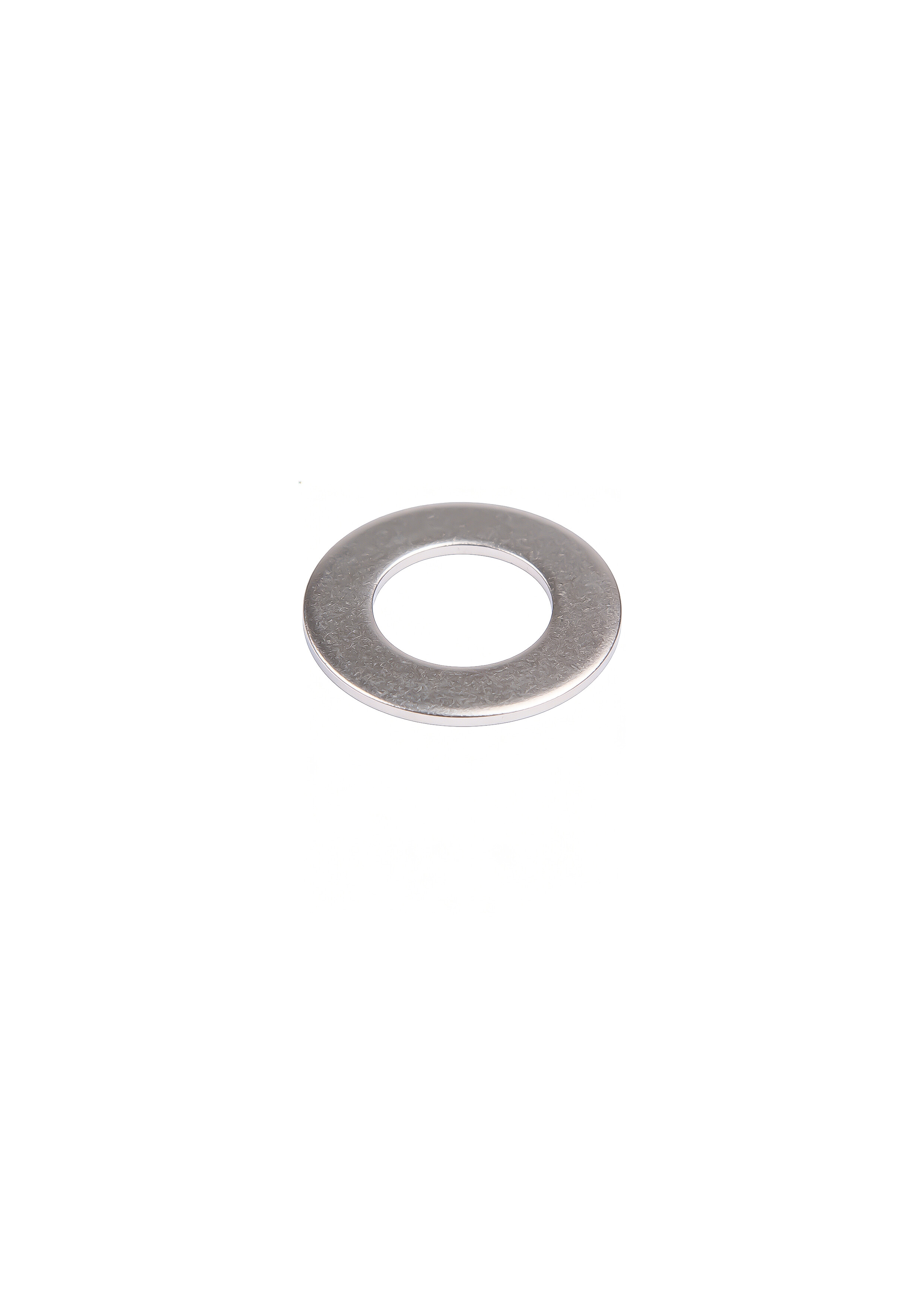

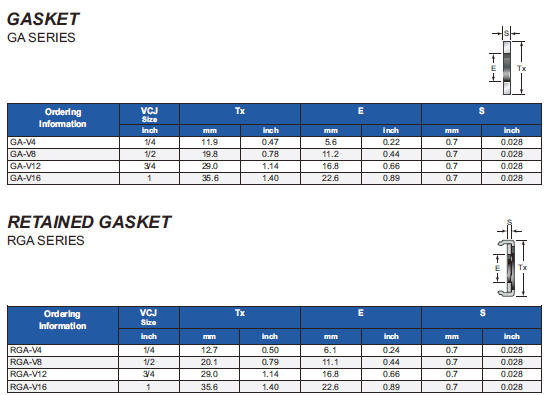

Gasket (non-claw)
Specialized in product
serie1 Short Gland serie2 Long Gland serie Male Nut serie Female Nut
1 2
3
4

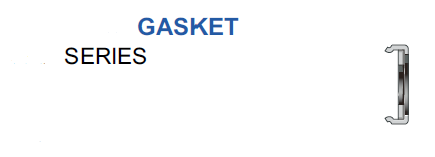

5 Gasket
5

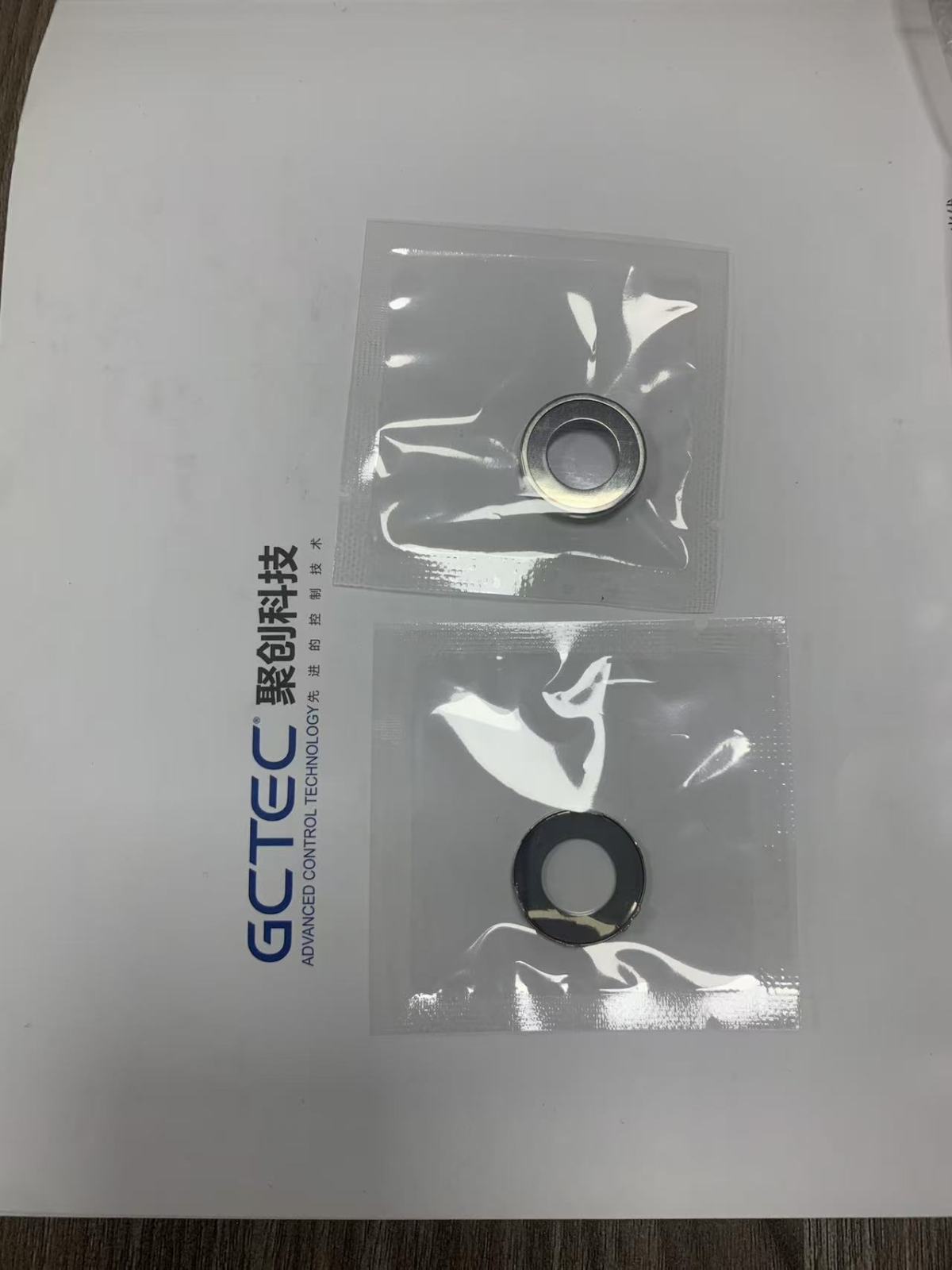

Product Display

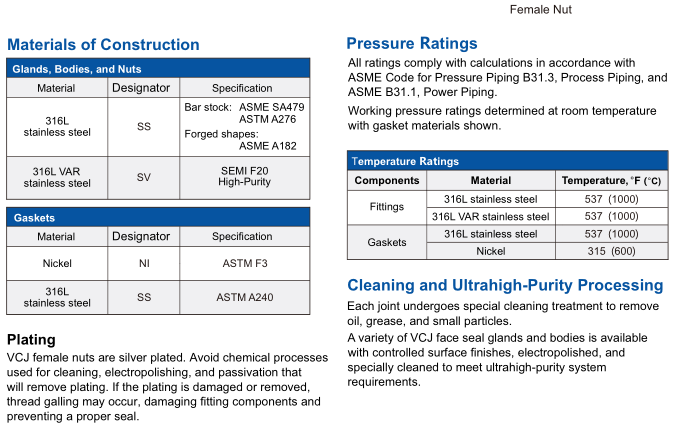

General purpose grade BODY material shall have a compositon per ASTM A182&SEMI F20 ,the limited Sulfur0.012% ,the range of Wt% of Carbon 0.03%max, and 316L
inherently exhibits enhanced resistance to pitting due to its molybdenmum(Mo)content.
Since our uptream follow the VIM-VAR melting process, it ensures our material better both in microstructure forms and presentation on corrosion Resistance.
PRODCUTION
![Project design]( "Project design")
Project design![CNC Program Process]( "CNC Program Process")
CNC Program Process![Surfurce and Die Treatment]( "Surfurce and Die Treatment")
Surfurce and Die Treatment![finish inspection]( "finish inspection")
finish inspection![Pressure test]( "Pressure test")
Pressure test![Assembly]( "Assembly")
Assembly![packing process]( "packing process")
packing process
