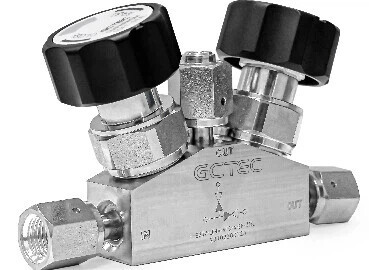

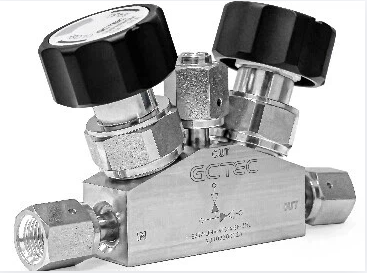

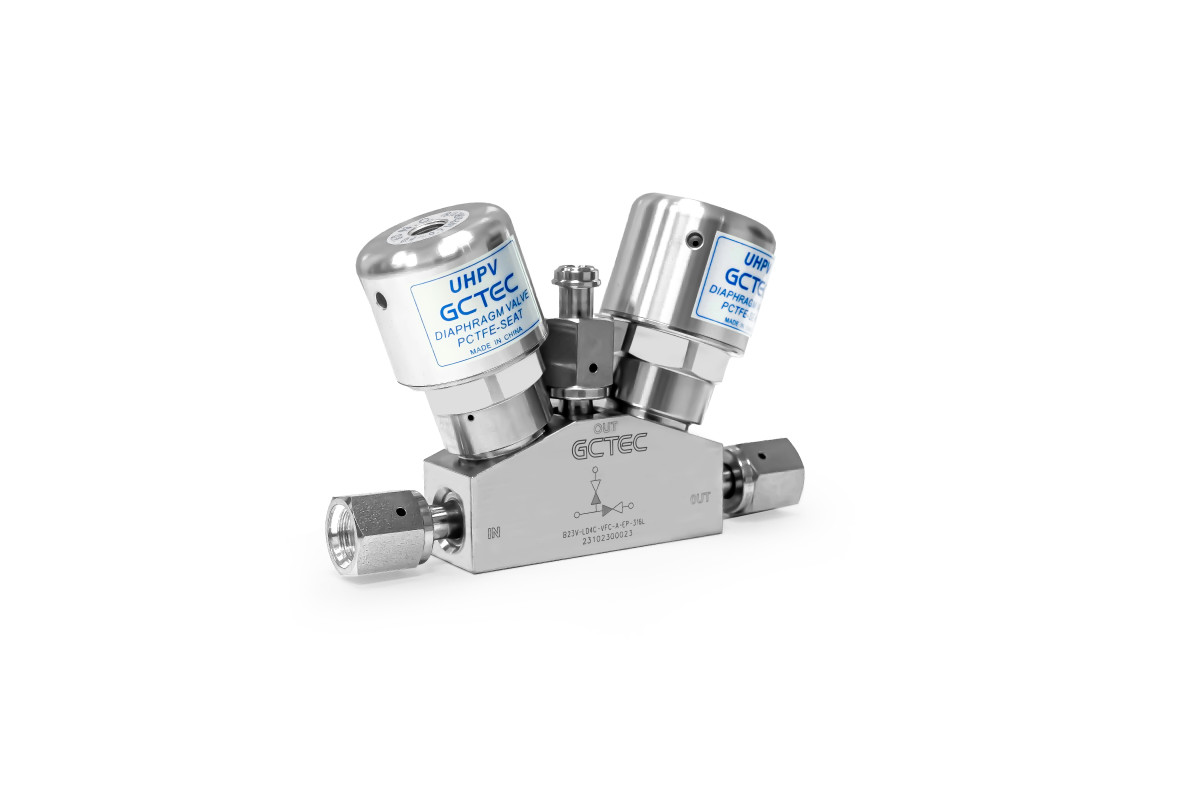

By combining two LD or HD series diaphragm valves into one,the dead zone is minimized to the greatest extent through
Low Pressure：250 pisg ( 17.2bar), High Pressure; 3000 pisg (207bar)
a common flow path, and the degassing performance is excellent.
While maintaining the basic performance of the original valve,the most compact piping system can be designed through
Suitable assemble and pack for the semiconductor industry that requires ultra-high purity.
Every product undergoes helium leak test before being released to market.

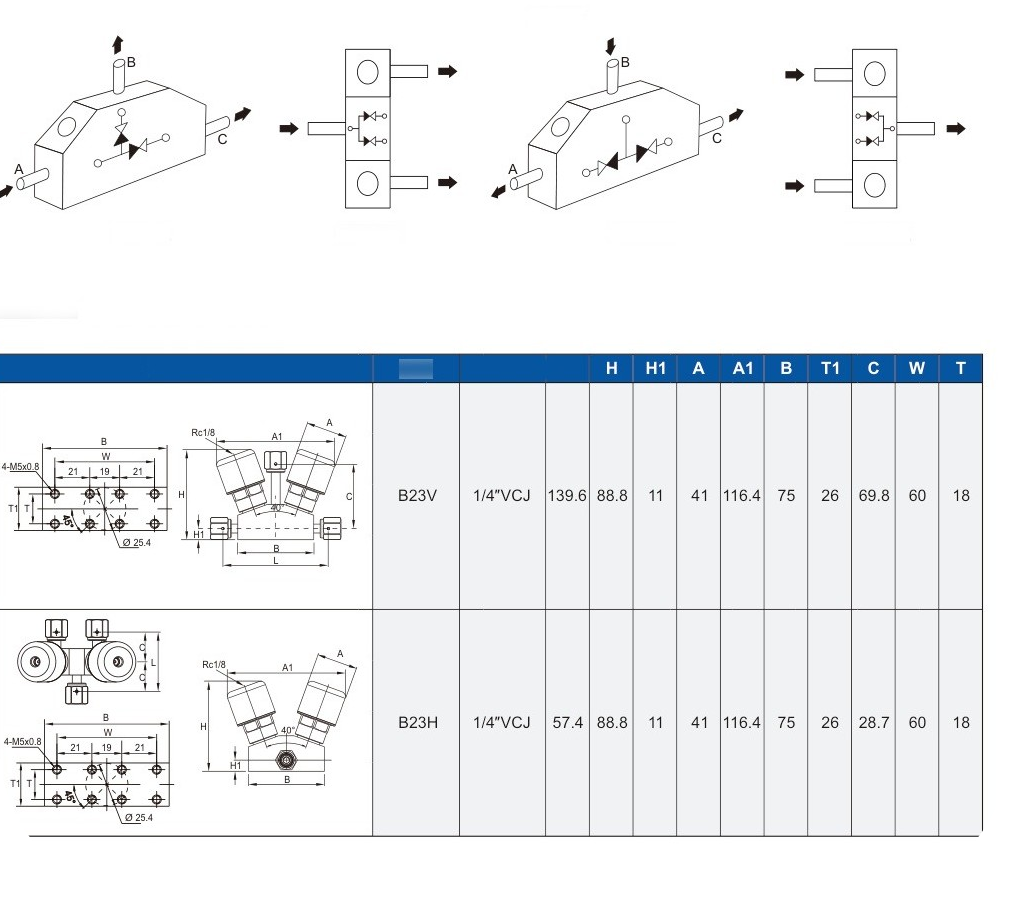

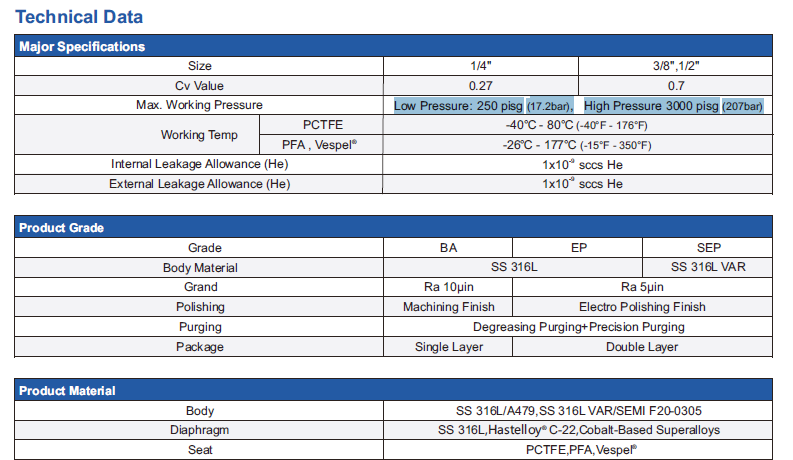

Product Parameters

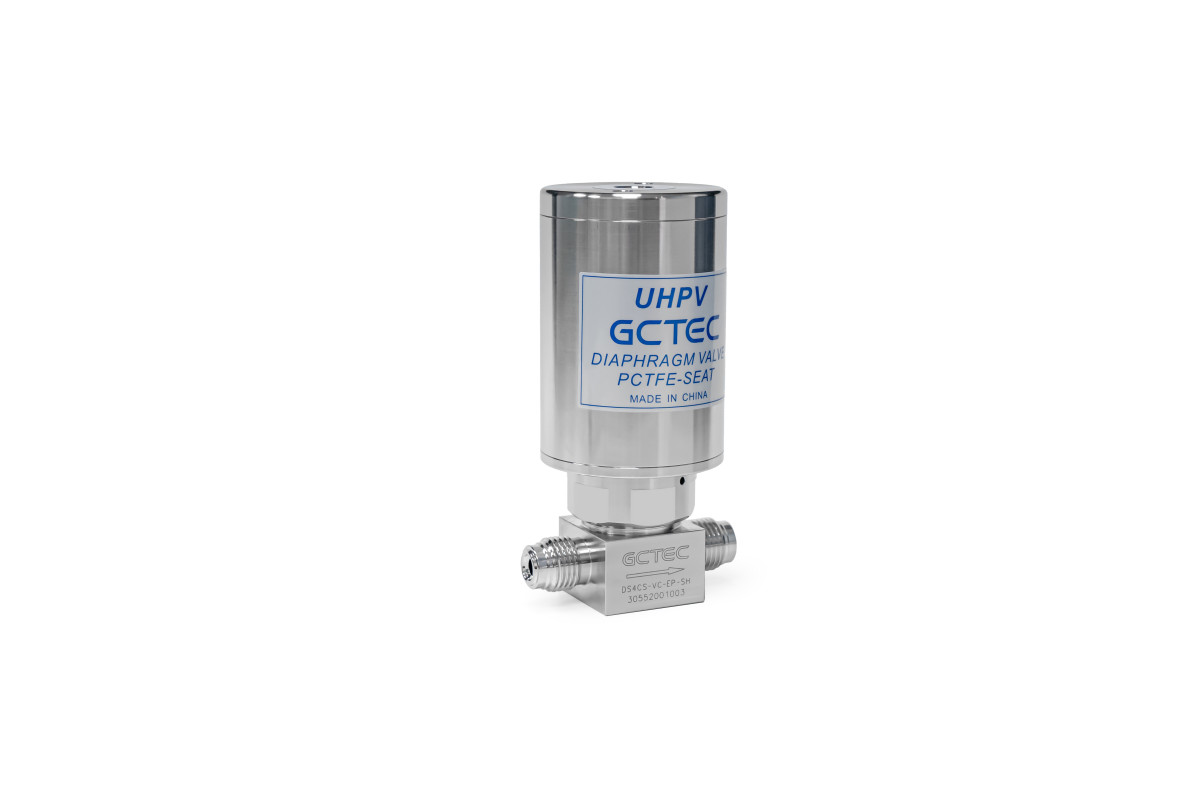

Product Display
PRODCUTION
![Project design]( "Project design")
Project design![CNC Program Process]( "CNC Program Process")
CNC Program Process![Surfurce and Die Treatment]( "Surfurce and Die Treatment")
Surfurce and Die Treatment![finish inspection]( "finish inspection")
finish inspection![Pressure test]( "Pressure test")
Pressure test![Assembly]( "Assembly")
Assembly![packing process]( "packing process")
packing process
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer and trading company. We have specialized in manufacturing fittings and valves for more than 10 years.
Q: Can you OEM?
Yes, we can OEM according to your drawings.
Q: How long is your delivery time?
A: In stock -- 1 to 7 days
No stock -- 7 to 30 days
Depending on the quantity
Q: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance, balance before shipment.
